A colloidal dispersion under steady (DC) zigzag shear flow. †

• Simulation parameters
  • CFD Lattice: 128 x 128 x 128 mesh
  • Number of Particles: N = 500
  • Diameter of Particles: D = 8 mesh
  • Volume Fraction: Φ = 0.064
  • Temperature: kBT = 1
  • Shear Rate: 0.01
  • Number of Iteration Steps: 20,000

• To reproduce this simulation
  • Input UDF file: shear_dc.udf
  • Command (Remove "./" if you use Windows command prompt. Replace ">&" with "2>" if you use sh, bash or Windows command prompt.)

   > mkdir ./avs_dc
   > mkdir ./avs_dc/avs
   > ./kapsel -Ishear_dc.udf -Ooutput.udf -Ddefine_2.00.udf -Rrestart.udf >& out1

• Data plot

   > gnuplot
   ...
   gnuplot> plot "out1" u 1:5 t "viscosity"

• Visualization
  • GOURMET: particleshow_velocity.py
  • AVS/Express:　shear_avs.v

• Related Papers
  • Takuya Iwashita, Ryoichi Yamamoto, Direct numerical simulations for non-Newtonian rheology of concentrated particle dispersions, cond-mat arXiv:0905.0130

A colloidal dispersion under oscillatory (AC) zigzag shear flow. †

• Simulation parameters
  • CFD Lattice: 128 x 128 x 128 mesh
  • Number of Particles: N = 500
  • Diameter of Particles: D = 8 mesh
  • Volume Fraction: Φ = 0.064
  • Temperature: 0.01
  • Shear Rate: 0.01
  • Frequency: 0.05
  • Number of Iteration Steps: 5,000

• Files needed for reproducing this simulation
  • Input UDF file: shear_ac.udf
  • Command (Remove "./" if you use Windows command prompt. Replace ">&" with "2>" if you use sh, bash or Windows command prompt.)

   > mkdir ./avs_ac
   > mkdir ./avs_ac/avs
   > ./kapsel -Ishear_ac.udf -Ooutput.udf -Ddefine_2.00.udf -Rrestart.udf >& out2

• Data plot

   > gnuplot
   ...
   gnuplot> plot "out2" u 1:6 t "Shear stress", "out2" u 1:2 t "Shear rate"

#ref(): File not found: "shea_ac.jpg" at page "Re04"

• Visualization
  • GOURMET: particleshow_velocity.py
  • AVS/Express: shear_avs.v

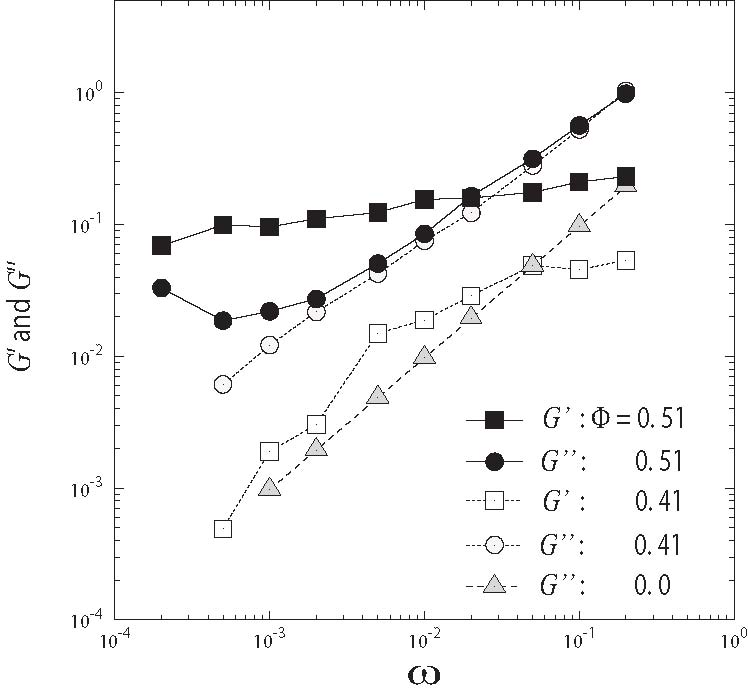

• Related Papers
